| Technical Specification |
| Mode |

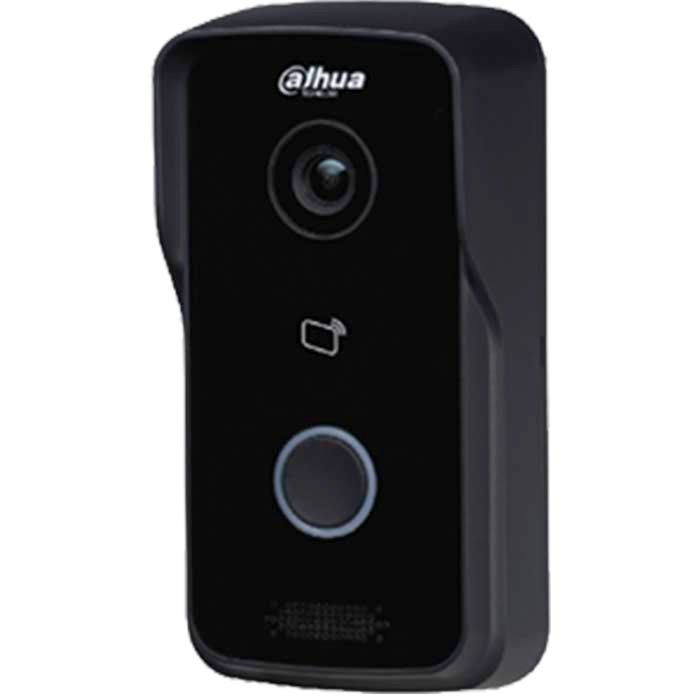

DHI-VTO2111D-WP-S1 |
| System |
| Main Processor |
Embedded Micro Processor |
| Operation System |
Embedded LINUX OS |
| Video |
| Video Compression |
H.264 |
| Image Sensor |
1/4” 1MP CMOS |
| Lens |
2.2mm |
| Angle of View |
H:108°, V:81°, D:135° |
| Day/Night |
ICR |
| Audio |
| Audio Compression |
G.711 |
| Audio Input |
Omnidirectional Mic |
| Audio Output |
Built-in Speaker |
| Bidirectional Talk |
Support Dual-way Bidirectional talk |
| Operation Mode |
| Keypad |
Single Mechanical Button |
| Reader |
Mifare Card |
| Body Approaching |
0.6m |
| Interface |
| Door Control |
2(1 relay out for main lock, 1 extended by access control module) |
| Alarm In |
2(1ch unlock button, 1ch feedback) |
| RS485 |
1 |
| Network |
| Wi-Fi |
IEEE802.11b/g/n |
| Ethernet |
10M/100Mbps Self-adaptive |
| Network Protocol |
TCP/IP |
| General |
| Ingress Protection |
IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
| Tamper Switch |
1 |
| Installation |
Surface |
| Material |
Plastic |
| Power |
DC 12V,PoE(802.3af) |
| Power Consumption |
Work <7W |
| Working Environments |
﹣30°C to +60°C |
| Relative Humidity |
10%RH–90%RH |
| Dimensions |
135mm×70.4mm×34.4mm |
| Weight |
0.4kg |
