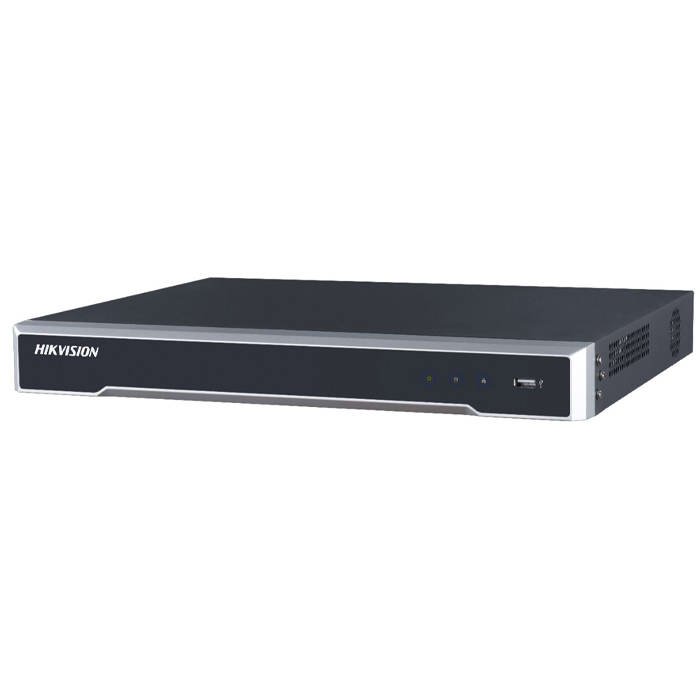

Hikvision DS-7608NI-I2/8P

Hikvision DS-7608NI-I2/8P 8ch PoE CCTV NVR, 80Mbps 8 PnP ports, 4K, 2 HDD Bay + 3TB Hard Drive

Price Include GST:$ 789.80

Up to 8 channel IP cameras can be connected
Up to 2-ch@12 MP/16-ch@1080p decoding capacity
1 HDMI and 1 VGA interfaces: both interfaces support independent video output
2 HDDs for continuous video recording
Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
Supports dual-stream recording to save time and bandwidth

Video and Audio

IP Video Input

Up to 12 MP resolution

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

256 Mbps

HDMI Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

CVBS Output

N/A (1-ch is optional, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480}

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Video Output Mode

HDMI/VGA independent output

Decoding

Dual-Stream Recording

Support

Decoding Format

H.265/H.265+/H.264/H.264+/MPEG4

Decoding Capability

2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)

Synchronous Playback

Recording Resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726

Network

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Remote Connection

Network Interface

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Interface

8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

≤ 120 W

Standard

IEEE 802.3 af/at

Auxiliary Interface

4 SATA interfaces

Capacity

Up to 10 TB capacity for each HDD

Alarm In/Out

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

≤ 15 W (without HDD and PoE off)

Working Temperature

-10 to +55º C (+14 to +131º F)

Working Humidity

10 to 90 %

Dimension (W × D × H)

385 × 315 × 52 mm (15.2" × 12.4" × 2.0")

≤ 3 kg (6.6 lb.)

Certification

Part 15 Subpart B, ANSI C63.4-2014

EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
