2.8mm

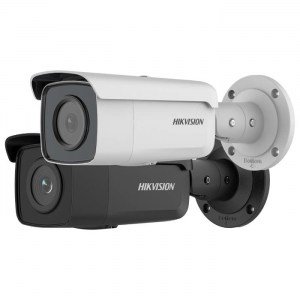

Hikvision DS-2CD2T85G1-I8-Black

Hikvision DS-2CD2T85G1-I8 Black 4K Powered-by-DarkFighter Fixed Bullet Network Camera, IR Range up to 80

Name: Hikvision DS-2CD2T85G1-I8 Black, 4K Powered-by-DarkFighter Fixed Bullet Network Camera, IR Range up to 80
Brand: Hikvision
SKU: DS-2CD2T85G1-I8-Black
Price: 338.8 AUD
Availability: InStock

Price Include GST:$ 338.80

Hikvision

High quality imaging with 8 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
Robust structure design with full metal materials.
Up to 8 megapixel high resolution
Max. 3840 × 2160 @20fps
2.8 mm/4 mm/6 mm fixed lens, optional
H.265, H.265+, H.264+, H.264
120dB WDR
Powered by Darkfighter
12 VDC & PoE (802.3af, class 3)
Support on-board storage, up to 128 GB
IP67
BLC/3D DNR/ROI/HLC
Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @(F1.6, AGC ON)

Camera

Image Sensor

1/2" Progressive Scan CMOS

Min. Illumination

Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

120dB

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focus

Fixed

Lens Type

2.8/4/6 mm, horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131°

4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8°

6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60°

Aperture

F1.6

Lens Mount

M16

Illuminator

IR Range

-I5: Up to 50 m,-I8: Up to 80 m

Wavelength

850 nm

Video

Max. Resolution

3840 × 2160

Main Stream

50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Video Compression

Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Region of Interest (ROI)

Support 1 fixed region for main stream and sub-stream separately

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

User/Host

Up to 32 users,3 levels: Administrator, Operator and User

Network Storage

Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+

Alarm Trigger

Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error


Day/Night Switch

Day/Night/Auto/Schedule

DNR

3D DNR

Image Enhancement

BLC/3D DNR/HLC

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

On-board Storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection

Face Detection

Yes

Exception Detection

Scene change detection

General

Linkage Method

Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email

Firmware Version

V5.5.80

Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General Function

Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening

Startup and Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)

Power Consumption and Current

-I5:,12 VDC, 0.7 A, max: 9 W,PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.1 A, max: 11 W,-I8:,12 VDC, 1 A, max: 11 W,PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.1 A, max: 12.9 W

Camera Dimension

Camera: Φ105 × 289.5 mm (4.1″ × 11.4″)

Camera Weight

Camera: 1000 g (2.2 lb.),With package: 1500 g (3.3 lb.)

Approval

Protection

IP67
