- 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
- Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps
- 265 codec, high compression rate, low bit rate
- Built-in warm illuminator, and the max. illumination distance: 40 m
- ROI, SMART 264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light
- Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
- 12V DC/PoE power supply
- IP67 protection
- SMD Plus
- Red and blue flashlight alarm
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
With advanced deep learning algorithm, Dahua WizSense 3 Series net- work camera supports intelligent functions, such as perimeter protection and smart motion detection. In addition, with full-color technology, it provides a better image effect in the condition of low illuminance.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color technology can display clear colorful image in the environment of ultra- low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.
Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normal after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
| Camera |
| Image Sensor |
1/2.7”5Megapixel progressive CMOS |
| Max. Resolution |
2592 (H) × 1944 (V) |
| ROM |
128 MB |
| RAM |
512 MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.006 Lux @F2.0 |
| S/N Ratio |
＞56 dB |
| Illumination Distance |
10 m (32.8 ft) |
| Illuminator On/Off Control |
Auto/Manual |
| Illuminator Number |
3 (IR LED) |
| Lens |
| Lens Type |
Fixed-focal |
| Mount Type |
M12 |
| Focal Length |
1.4 mm |
| Max. Aperture |
F2.0 |
| Field of View |
Horizontal: 180° Vertical: 180° Diagonal: 180° |
| Iris Type |
Fixed |
| Close Focus Distance |
0.2 m (0.7 ft) |
| DORI Distance |
Detect |
Observe |
Recognize |
Identify |
| 28 m
(91.9 ft)
|
11.2 m
(36.7 ft)
|
5.6 m
(18.4 ft)
|
2.8 m
(9.2 ft)
|
| Smart Event |
| Heat Map |
Yes |
| Professional, intelligent |
| IVS (Perimeter Protection) |
Tripwire; intrusion |
| People Counting |
Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas |
| Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video |
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec |
Smart H.265+/ Smart H.264+ |
| Video Frame Rate |
Main stream (2592 × 1944 @1–25/30 fps) sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps) third stream (1280 × 720 @1–25/30 fps) |
| Stream Capability |
3 streams |
| Resolution |
5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Day/Night |
Auto (ICR)/Color/B/W |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
120 dB |
| Scene Self-adaptation |
Yes |
| White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D DNR |
| Motion Detection |
OFF/ON (4 areas) |
| Region of Interest (RoI) |
Yes (4 areas) |
| Smart Illumination |
Yes |
| Privacy Masking |
4 areas |
| Audio |
| Built-in MIC |
Yes |
| Audio Compression |
PCM; G.711a; G.711Mu; G726; AAC |
| Alarm |
| Alarm Event |
No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception |
| Network |
| Network |
RJ-45 (10/100 Base-T) |
| SDK and API |
Yes |
| Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host |
20 (Total bandwidth: 64 M) |
| Storage |
Dahua Cloud; FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser |
IE: IE8, IE9 and IE11 Chrome Firefox |
| Management Software |
Smart PSS; DSS; DMSS |
| Mobile Phone |
IOS; Android |
| Certification |
| Certification |
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Port |
| Audio Input |
1 channel (RCA port) |
| Audio Output |
1 channel (RCA port) |
| Alarm Input |
1 channel in: 5mA 3V–5V DC |
| Alarm Output |
1 channel out: 300mA 12V DC |
| Power |
| Power Supply |
12V DC/PoE |
| Power Consumption |
Basic power consumption: 3.6W (12V DC); 4.4W (PoE) Max. power consumption (H.265 + IR on+ intelligent function + WDR): 7.3W (12V DC); 8.8W (PoE) |
| Environment |
| Operating Conditions |
–10°C to +50°C (14°F to +122°F)/Less than 95% RH |
| Strorage Conditions |
–40°C to +60°C (–40°F to +140°F) |
| Structure |
| Casing |
Metal + plastic |
| Dimensions |
44.6 mm × Φ126.2 mm (1.8″ × Φ5.0″) |
| Net Weight |
299 g (0.7 lb) |
| Gross Weight |
441 g (1.0 lb) |

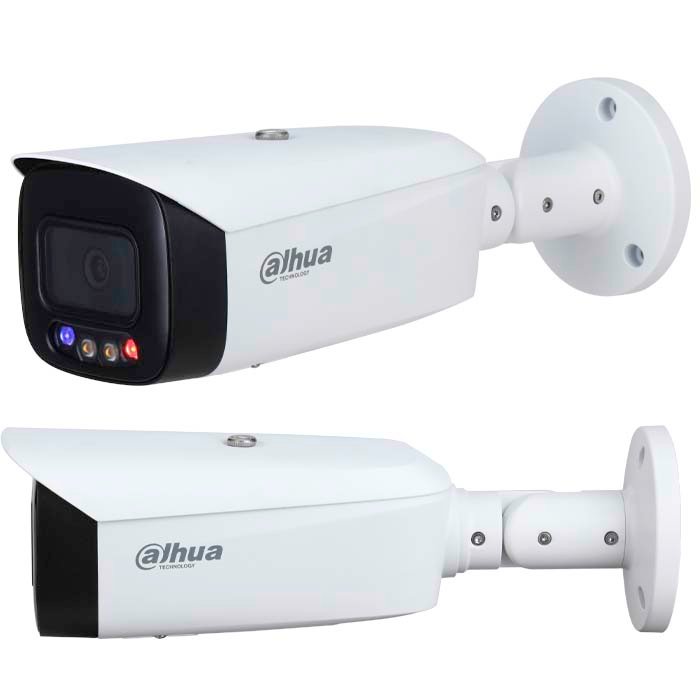

IPC-HFW3549T1-AS-PV
