- 1/2.7” 5Megapixel progressive scan CMOS
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- 20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)
- WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- 8 mm fixed lens (3.6 mm, 6.0 mm optional)
- 1/1 Alarm in/out, 1/1 audio in/out (Built-in MIC, Built-in Speaker)
- IR LEDs Length 50 m
- Micro SD memory, IP67
- Full metal body and casing
Launched by Dahua Technology, Dahua WizMind is a full portfolio of so- lutions composed of project-oriented products including IPC, NVR, P-T-Z, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
Series Overview
With starlight solution and deep learning algorithm, Dahua WizMind 5 Series network camera has various intelligent functions, including face capture, perimeter protection and people counting, which greatly improve the accuracy of video analysis. The series camera supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
People Counting
With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/daily reports to meet your requirements.
Active Deterrence
Active deterrence is to warn off intruders actively with white light and siren even before users are aware of the incidence. Once an intrusion is detected, the white light will turn on and the siren will buzzer to alert the intruder. The white light can be set to Normally on or Flash, the content of siren is configurable.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normal after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
| Camera |
| Image Sensor |
1/2.7” 5Megapixel progressive scan CMOS |
| Effective Pixels |
2592 (H) × 1944 (V) |
| RAM/ROM |
512 MB/128 MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual, 1/3 s–1/100000 s |
| Minimum Illumination |
0.005 Lux@F1.6 |
| IR Distance |
Distance up to 50 m (164ft) |
| IR On/Off Control |
Auto/Manual |
| IR LEDs |
1 IR, 1 LED |
| Lens |
| Lens Type |
Fixed-focal |
| Mount Type |
Board-in |
| Focal Length |
2.8 mm, 3.6 mm, 6.0 mm |
| Max. Aperture |
F1.6 |
| Angle of View |
H: 102°, V: 71°/H: 84°, V: 58°/H: 51°, V: 37° |
| Aperture Type |
Fixed |
| Close Focus Distance |
0.9 m (2.95 ft)/1.6 m (5.25 ft)/3.1 m (10.17 ft) |
| DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
| 2.8mm |
56m(184ft) |
22m(72ft) |
11m(36ft) |
6m(20ft) |
| 3.6mm |
80m(262ft) |
32m(105ft) |
16m(52ft) |
8m(26ft) |
| 6.0mm |
120m(394ft) |
48m(157ft) |
24m(79ft) |
12m(39ft) |
| Pan/Tilt/Rotation |
| Pan/Tilt/Rotation Range |
Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Artificial Intelligence |
| Perimeter Protection |
Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering |
| People Counting |
Support Line crossing/Region/Queueing people counting;Support 4 accesses independent detection, 4 areas independent detection |
| General Intelligence |
| Event Trigger |
Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly |
| General Intelligence |
Object Abandoned/Missing |
| Heat Map |
Yes |
| Video |
| Compression |
H.265,H.264,H.264B,H.264H,
MJPEG (sub stream)
|
| Smart Codec |
Yes |
| Streaming Capability |
3 Streams |
| Resolution |
2592 × 1944/2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
| Frame Rate |
Main Stream: 2592 × 1944 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
|
| Sub Stream: D1 (1 fps–20/30 fps)
D1 (1 fps–50 fps)
|
| Third Stream: 1080P (1 fps–17 fps) |
| Bit Rate Control |
CBR/VBR |
| Bit Rate |
H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 Kbps
|
| Day/Night |
Auto (ICR)/Color/B/W |
| BLC Mode |
BLC/HLC/WDR (120 dB) |
| White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D DNR |
| Motion Detection |
Off/On (4 Zone, Rectangle) |
| Region of Interest |
Off/On (4 Zone) |
| Electronic Image Stabilization (EIS) |
N/A |
| Smart IR |
Yes |
| Defog |
Yes |
| Flip |
0°/90°/180°/270° |
| Mirror |
Off/On |
| Privacy Masking |
Off/On (4 Area, Rectangle) |
| Audio |
| Compression |
G.711a, G.711Mu, G.726, AAC, G.723 |
| Network |
| Ethernet |
RJ-45 (10/100 Base-T) |
| Protocol |
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
| Interoperability |
ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
| Streaming Method |
Unicast/Multicast |
| Max. User Access |
20 Users |
| Edge Storage |
NAS;FTP;SFTP
Micro SD card 256 GB
|
| Web Viewer |
IE (versions newer than IE8), Chrome,
Firefox, Safari (versions newer than Safari 12)
|
| Management Software |
Smart PSS, DSS, DMSS |
| Smart Phone |
iOS, Android |
| Certifications |
| Certifications |
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
| Interface |
| Audio Interface |
1/1 channel In/Out, Built-in MIC, Built-in Speaker |
| RS485 |
N/A |
| Alarm |
1 channel In: 5mA 5V DC
1 channel Out: 300mA 12V DC
|
| Electrical |
| Power Supply |
DC 12V (±30%), PoE (802.3af) (Class 0) |
| Power Consumption |
<7.2W |
| Environmental |
| Operating Conditions |
-30° C to +60° C (-22° F to +140° F)/Less than 95% RH |
| Storage Conditions |
-30° C to +60° C (-22° F to +140° F) |
| Ingress Protection |
IP67 |
| Construction |
| Casing |
Full Metal |
| Dimensions |
Φ122 mm × 113.5 mm (4.80” × 4.47”) |
| Net Weight |
0.49 kg (1.08 lb) |
| Gross Weight |
0.65 kg (1.43 lb) |

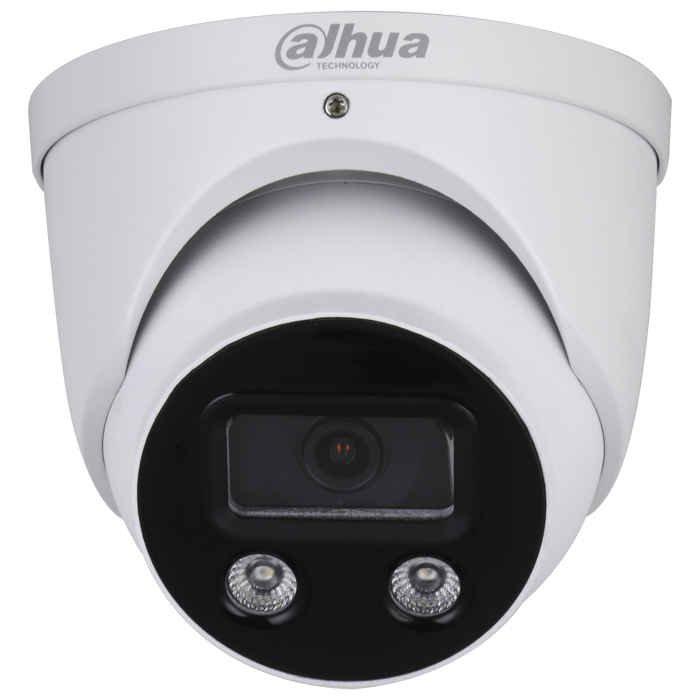

DH-IPC-HDW5541HP-ASE-PV
