- 1/1.8” 4Megapixel progressive scan CMOS
- ROI, SMART 264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- 25/30 fps@2688 × 1520, 50/60 fps@1080P (1920 × 1080)
- WDR (140 dB), Day/Night (Electronic), 3D DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- 8 mm fixed lens (3.6 mm, 6.0 mm optional)
- 1/1 Alarm in/out, 1/1 audio in/out
- LEDs Length 20 m
- Micro SD memory, IP67,IK10
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, P.T.Z, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
With starlight solution and deep learning algorithm, Dahua WizMind 5 Series network camera has various intelligent functions, including
face capture, perimeter protection and people counting, which greatly improve the accuracy of video analysis. The series camera supports dust- proof function, waterproof function and vandal-proof function, com- plying with the standards of IP67 and IK10 (Supported by some select models).
Face Detection
Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
People Counting
With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/daily reports to meet your requirements.
Full-color Starlight
The camera adopts F1.6 large aperture lens and 1/1.8" high performance sensor. With higher amount of absorbed light and advanced im- age processing algorithm, the camera presents an impressive lowlight performance with an exceptional balance between noise reduction and the blur of moving object.
Warm Supplemental lights
With two warm supplemental LED lights, the camera can provide a colorful and vivid image even in total darkness. It also provides visible By default, the camera is set to smart light mode, in which the camera can automatically adjust the exposure time and light sensitivity simultaneously to avoid overexposure of the objects in the image center. Also, the sensitivity and intensity of the LED lights can be remotely controlled by OSD menu.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normal after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
| Camera |
| Image Sensor |
1/1.8” 4Megapixel progressive scan CMOS |
| Effective Pixels |
2688 (H) × 1520 (V) |
| RAM/ROM |
512 MB/128 MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual, 1/3 s–1/100000 s |
| Minimum Illumination |
0.002 Lux@F1.6 |
| LED Distance |
Distance up to 20 m (66 ft) |
| LED On/Off Control |
Auto/Manual |
| LEDs |
2 |
| Lens |
| Lens Type |
Fixed-focal |
| Mount Type |
Board-in |
| Focal Length |
2.8 mm, 3.6 mm, 6.0 mm |
| Max. Aperture |
F1.6 |
| Angle of View |
H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31° |
| Aperture Type |
Fixed |
| Close Focus Distance |
1.3 m (4.27 ft)/1.9 m (6.23 ft)/3.8 m (12.47 ft) |
| DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
| 2.8mm |
58m(190ft) |
23m(75ft) |
12m(39ft) |
6m(20ft) |
| 3.6mm |
72m(236ft) |
29m(95ft) |
14m(46ft) |
7m(23ft) |
| 6mm |
113m(371ft) |
45m(148ft) |
23m(75ft) |
11m(36ft) |
| Pan/Tilt/Rotation |
| Pan/Tilt/Rotation Range |
Pan: 0˚–360˚; Tilt: 0˚–90˚; Rotation: 0˚–360˚ |
| Artificial Intelligence |
| Face Detection |
Support face image capture |
| Perimeter Protection |
Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering |
| People Counting |
Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection |
| General Intelligence |
| Event Trigger |
Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly |
| General Intelligence |
Object Abandoned/Missing |
| Heat Map |
Yes |
| Video |
| Compression |
H.265,H.264,H.264B,H.264H,
MJPEG (sub stream)
|
| Smart Codec |
Yes |
| Resolution |
2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
| Streaming Capability |
3 Streams |
| Frame Rate |
Main Stream: 2688 × 1520 (1 fps–25/30 fps)
2560 × 1440 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
|
| Sub Stream: D1 (1 fps–25/30 fps)
D1 (1 fps–50/60 fps)
|
| Third Stream: 1080P (1 fps–16 fps) |
| Bit Rate Control |
CBR/VBR |
| Bit Rate |
H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 Kbps
|
| Day/Night |
Day/Night: Electronic
Auto/Color/B/W
|
| BLC Mode |
BLC/HLC/WDR (140 dB) |
| White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D DNR |
| Motion Detection |
Off/On (4 Zone, Rectangle) |
| Region of Interest |
Off/On (4 Zone) |
| Electronic Image Stabilization (EIS) |
N/A |
| Smart IR |
Yes |
| Defog |
Yes |
| Flip |
0°/90°/180°/270° |
| Mirror |
Off/On |
| Privacy Masking |
Off/On (4 Area, Rectangle) |
| Audio |
| Compression |
G.711a, G.711Mu, G.726, AAC, G.723 |
| Network |
| Ethernet |
RJ-45 (10/100 Base-T) |
| Protocol |
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
| Interoperability |
ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
| Streaming Method |
Unicast/Multicast |
| Max. User Access |
20 Users |
| Edge Storage |
NAS;FTP;SFTP
Micro SD card 256 GB
|
| Web Viewer |
IE (versions newer than IE8), Chrome,
Firefox, Safari (versions newer than Safari 12)
|
| Management Software |
Smart PSS, DSS, DMSS |
| Smart Phone |
iOS, Android |
| Certifications |
| Certifications |
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
| Interface |
| Audio Interface |
1/1 channel In/Out |
| RS485 |
N/A |
| Alarm |
1 channel In: 5mA 5V DC
1 channel Out: 300mA 12V DC
|
| Electrical |
| Power Supply |
DC 12V (±30%), PoE (802.3af) (Class 0) |
| Power Consumption |
<7.4W |
| Environmental |
| Operating Conditions |
-30° C to +60° C (-22° F to +140° F)/Less than 95% RH |
| Storage Conditions |
-30° C to +60° C (-22° F to +140° F) |
| Ingress Protection |
IP67 |
| Vandal Resistance |
IK10 |
| Construction |
| Casing |
Metal |
| Dimensions |
244.1 mm × 79.0 mm × 75.9 mm (9.61” × 3.11” × 2.99”) |
| Net Weight |
0.815 kg (1.80 lb) |
| Gross Weight |
1.08 kg (2.38 lb) |

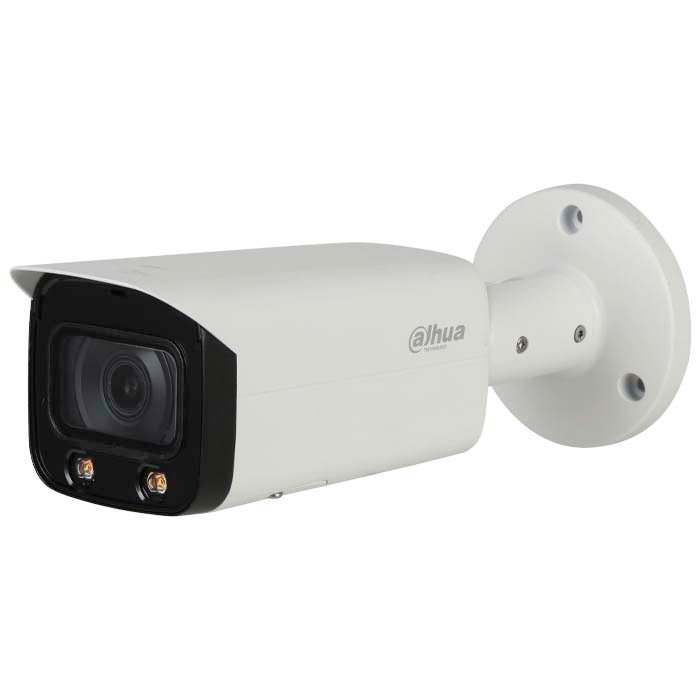

IPC-HFW5442TP-AS-LED
