IPC-HFW3449EP-AS-LED

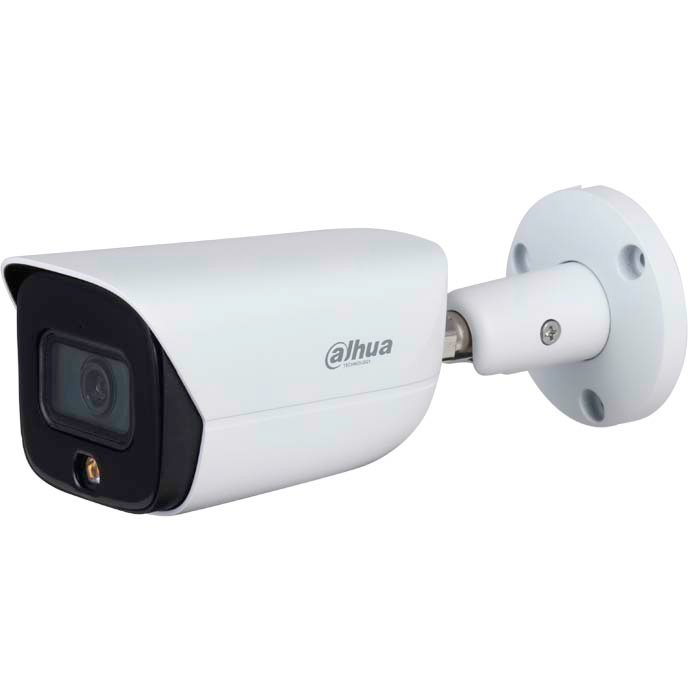

Dahua AI IPC-HFW3449EP-AS-LED 4MP Full-color Warm LED Fixed-focal Bullet WizSense Network Camera 3.6mm

Price Include GST:$ 166.10

4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
Outputs 4MP (2688 × 1520) @ 30 fps
265 codec, high compression rate, low bit rate
Built-in Warm LED, LED distance: 30 m
ROI, SMART 264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports 256 G Micro SD card, built-in Mic
12V DC/PoE power support
IP67 protection
SMD Plus

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions

With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. In addition, with full-color technology, it provides a better image effect in the condition of low illuminance.

Full color

With high-performance sensor and large aperture lens, Dahua Full-color technology can display clear colorful image in the environment of ultra- low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.

SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normal after soaking in 1 m deep water for 30 minutes.

Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Camera

Image Sensor

1/2.7”4Megapixel progressive CMOS

Max. Resolution

2688 (H) ×1520 (V)

128 MB

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100, 000 s

Min. Illumination

0.003 Lux @ F1.0

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (warm LED)

Pan/Tilt/Rotation Range

Horizontal:0°-360°;Vertical:0°-90°;Rotation:0°-360°

Lens Type

Fixed-focal

Mount Type

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

Field of View

2.8 mm: Horizontal 103° × vertical 53° × diagonal 122°

3.6 mm: Horizontal 80° × vertical 43° × diagonal 95°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.2 m (3.9 ft)

3.6 mm: 2.4 m (7.9 ft)

DORI Distance

Detect

Observe

Recognize

Identify

2.8mm

56.0 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.7 ft)

5.6 m

(18.4 ft)

3.6mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.3 ft)

Professional, Intelligent

Perimeter Protection

Tripwire, intrusion (Recognition of vehicle and people)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG(only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream (2688 × 1520 @ 1–25/30 fps) sub stream (704 × 576 @ 1–25/704 × 480 @ 1-30 fps) third stream (1280 × 720 @ 1–25/30 fps)

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps

Day/Night

Color/B/W

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

Mirror

Privacy Masking

4 areas

Audio

Built-in MIC

Audio Compression

G.711a; G.711Mu; G726; AAC

Alarm

Alarm Event

No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD

Network

RJ-45 (10/100 Base-T)

SDK and API

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

Interoperability

ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

Scene self-adaptation

User/Host

20 (Total bandwidth: 64M.)

Storage

FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS

Browser

IE: IE8; IE9; IE11 Chrome Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC/PoE
