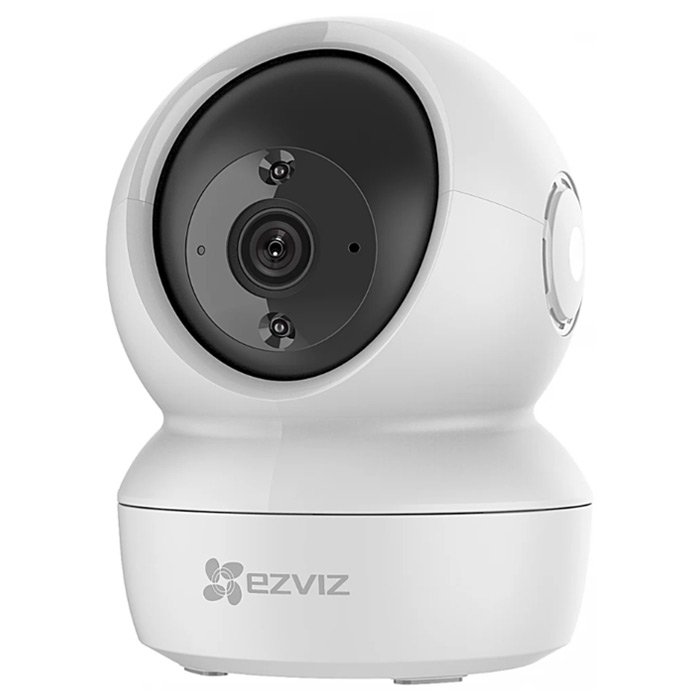

Ezviz CS-C6N 2 MP Network Camera
- Smart Wi-Fi Pan & Tilt Camera
- Smart night vision with Smart IR
- Zero blind spots
- Smart tracking
- Communication anytime
- Protects your privacy
- Multiple Storage Solutions
- Security at your fingertips
Model Parameters | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model | CS-C6N-A0-1C2WFR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/4" Progressive Scan CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shutter Speed | Self-adaptive shutter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day & Night | IR-cut filter with auto-switching | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DNR | 3D DNR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | Digital WDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | Adaptive bit rate. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 1920 × 1080 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate | Max. 15fps; Self-adaptive during network transmission | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Alarm | Motion detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi Pairing | AP Pairing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol | EZVIZ Cloud Proprietary Protocol | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface Protocol | EZVIZ Cloud Proprietary Protocol | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | MicroSD card slot (Max. 256 GB) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | Micro USB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

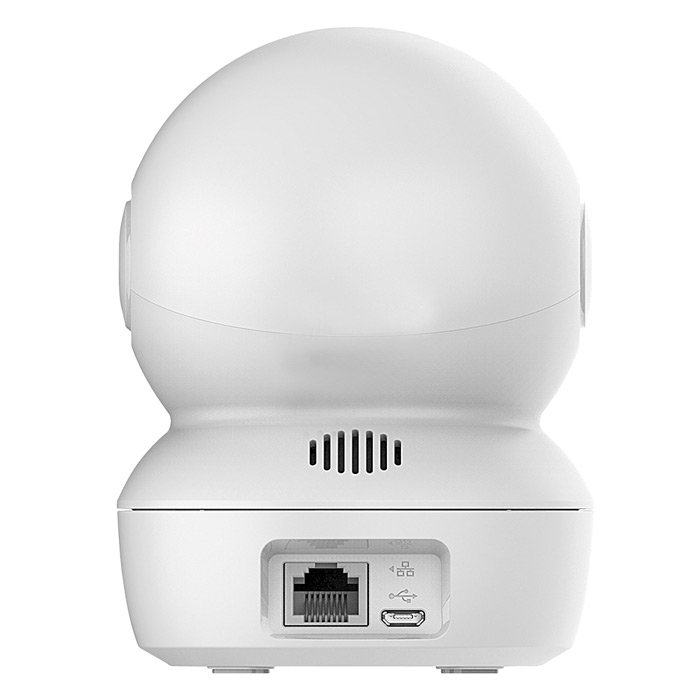

Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standard | IEEE802.11 b/g/n | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency Range | 2.4 GHz ~ 2.4835 GHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Channel Bandwidth | Supports 20MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | DC 5V/1A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 5W max | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Range | MAX. 10m (32.81 fts) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 88 mm x 88.2 mm x 119 mm (3.46” x 3.47” x 4.69”) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions | 103 mm x 103 mm x 168 mm (4.06” x 4.06” x 6.61”) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bare Weight | 218g (0.48lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Contents | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Contents | C6N camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template; Power Adapter; Quick Start Guide | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperature | -10° C to 45° C (14° F to 113° F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Humidity | 95% or less (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | FCC / UL / CE / WEEE / REACH / RoHS |
