- 433MHz two-way wireless communication
- Two-way communication, stable and secure
- LED display, show the differernt feedbacks with easy understanding
- Up to 35 hrs battery backup after mains lost, no worry about communication
- Finding and connecting up to 8 PIRCAM or smoke detectors automatically, smart auto-pairing
- Easy installation with new designed structure

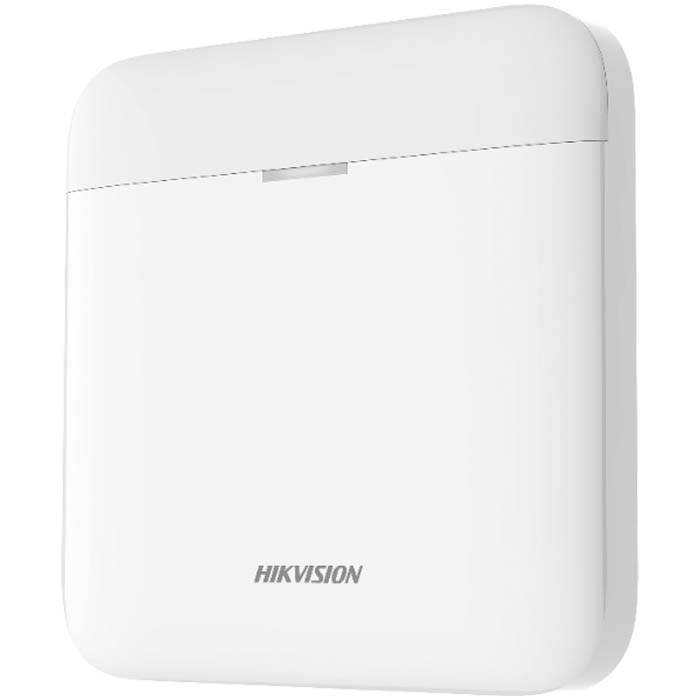

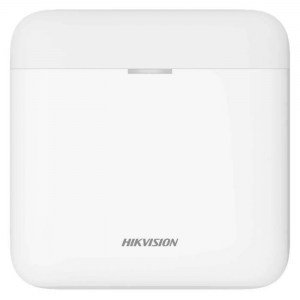

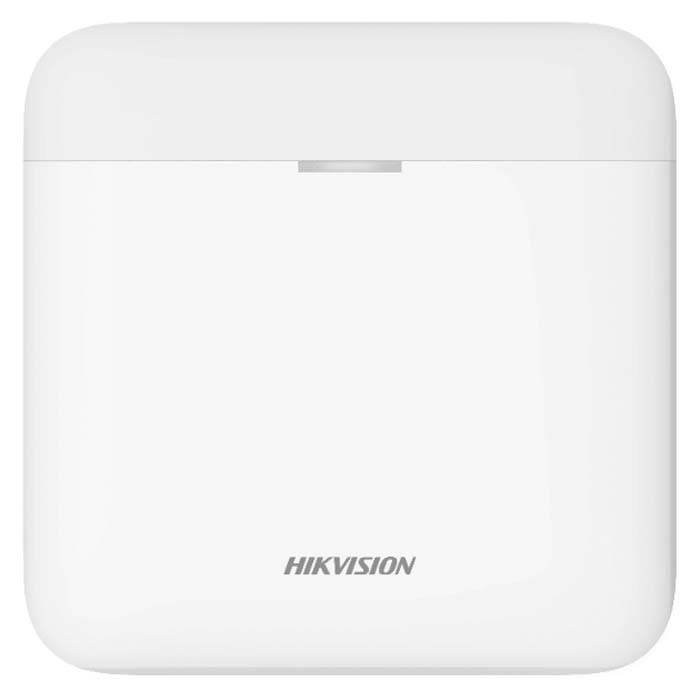

Wireless Repeater, 433MHz two-way RF wireless Technology (Tri-X and Cam-X: Transmission Range 800m), SSI (Signal Strength Indicators), Auto pairing with detectors and peripherals , Frequency hopping against jamming for reliable transmission, Tamper-Proof, Power Supply100VAC ~ 240VAC, Built in Battery Li up to 35 hours,
| Software features |
| Auto paring |
Supported |
| Hardware features |
| Serial port |
2, for debug |
| Tamper-Proof |
1, Front and Back |
| Power switch |
1 |
| Electrical characteristics |
| Battery type |
Built in Battery Li |
| Power supply |
100VAC ~ 240VAC |
| Operation humidity |
10％~90％ |
| Operation temperature |
﹣10℃~+55℃ |
| Battery life span |
Up to 35 hours |
| Wireless transmission |
| RF frequency |
433MHz |
| RF method |
Two way communication |
| RF modulation |
2GFSK |
| RF distance |
800m (Open area) |
| Wireless security |
AES-128 |
| Display |
| LEDs status |
3, Register/Signal (Green/Red), Power (Green), Fault (Amber) |
| General |
| Installation method |
Wall Mounting |
| Dimension(WxHxD) |
150*150*25mm |
| Shell material |
Plastic |
| Color |
White |
| |
372g |
| Device management |
| PIRCAM paring |
Supported |
