- 433MHz two-way wireless communication
- AES-128 encryption
- LED display, show the differernt feedbacks with easy understanding
- Operation: Stay arm/away arm/disarm by areas
- Arming process with fault confirm, more secure
- Patrol tag check in
- Front and rear panel tamper-proof

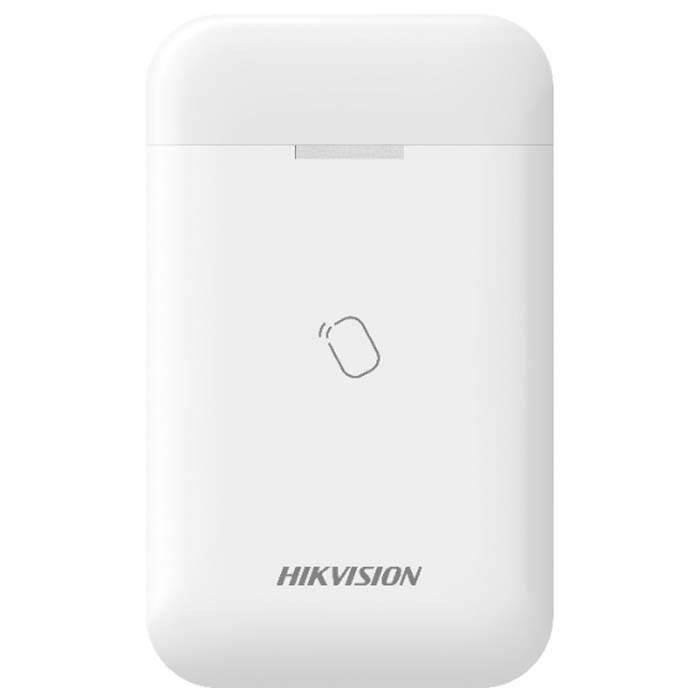

Wireless Tag Reader, 433MHz two-way RF wireless Technology (Tri-X: Transmission Range 900m), LED display, show the different feedbacks with easy understanding, Arming process with fault confirm, Frequency hopping against jamming for reliable transmission.
| Hardware features |
| Power switch |
Power on/off |
| Electrical characteristics |
| Battery type |
Three AA batteries |
| Operation humidity |
10% to 90% (no condensing) |
| Operation temperature |
-10°C to +55°C (-4°F to +122°F) |
| Power consumption |
Quiescent current: 110 uA
Max current: 292mA
Voltage: 1.5 VDC
|
| Battery life span |
2 years (swipe tag 10 times per day ) |
| Wireless transmission |
| RF frequency |
433 MHz |
| RF modulation |
2GFSK |
| RF distance |
900m(open area) |
| Display |
| Indicator |
5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green) |
| General |
| Installation method |
Wall mounting |
| Dimension(WxHxD) |
75*124*21 mm |
| Color |
white |
| |
176g (with battery) |
