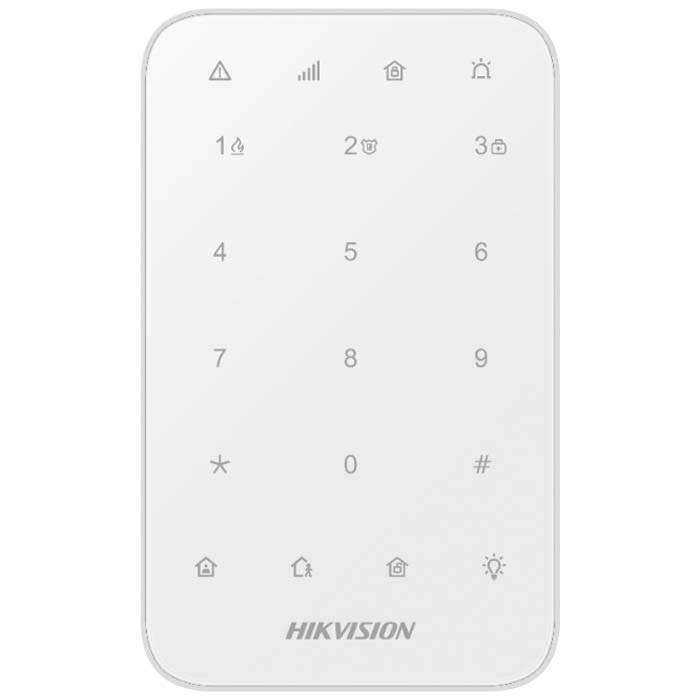

Wireless LED Keypad
- 433 MHz two-way wireless communication
- AES-128 encryption
- Stay/away arming, disarming, alarm clearing for specified area or all areas
- LED indicates the programmed area
- One-Push fire alarm, panic alarm, and medical alarm. Silent/Audible alarm selectable. etc.
- Output control
- Full touch key design with LED backlight
- Fully remote configurable through App
- Multiple enrollment methods and easy installation design
- Easy replaceable battery
- Frequency hopping against jamming for reliable transmission
Hikvision AX PRO Wireless LED Keypad, 433MHz two-way RF wireless Technology (Tri-X: Transmission Range 900m), Stay/away arming, disarming, alarm clearing for specified area or all areas, Automation control, Frequency hopping against jamming for reliable transmission.
| RF transmission |
| RF Frequency |
433 MHz |
| RF Modulation |
2GFSK |
| RF Range |
900m (open area) |
| Electrical characteristics |
| Power supply |
Battery Supply |
| Battery type |
Four AA batteries |
| Battery life span |
Standby time more than two years |
| General |
| Operation temperature |
-10 °C to +55 °C (-4 °F to +122 °F) |
| Operation humidity |
10% to 90% (No condensing) |
| Dimension(WxHxD) |
140 (5.50") x 86 (3.38") x 22 (0.87") mm |
| Weight |
151 g (5.33 oz) without battery |
| Installation method |
Screw mounting |
