- 433MHz two-way wireless communication
- AES-128 encryption
- LED display, show status of device and replay on/off display
- Small case design, which can be put into hiding places easily
- Automation operating, one button turn on/off from APP/Keyfob/Keypad
- Setting scenarios by different events
- With one tamper input, can be used as zone input for alarm

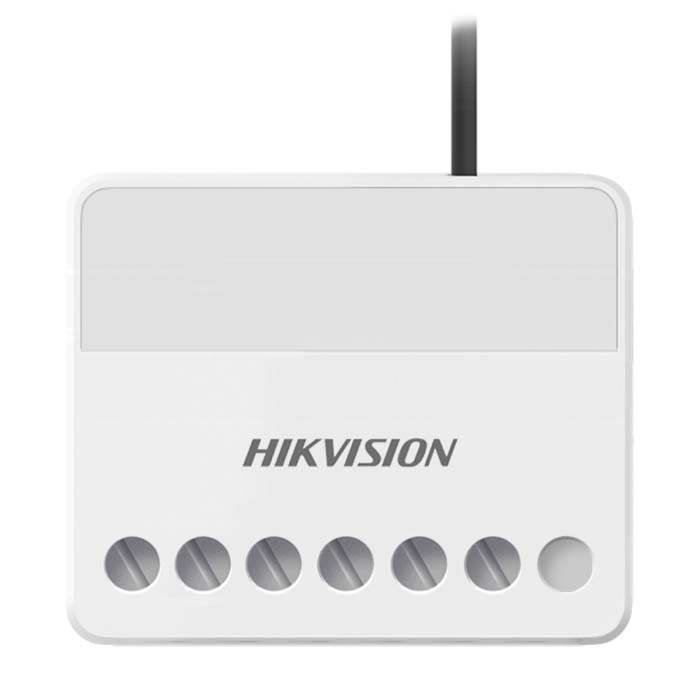

Wireless Relay module, 433MHz two-way RF wireless Technology (Tri-X: Transmission Range 800m), SSI(Signal Strength Indicators), Voltage and current protection, Frequency hopping against jamming for reliable transmission, Alarm Input for tamper, NO/NC, Relay Output NO/NC (0~36V DC, Max 5A), Power supply DC 7V – 24V
| Software features |
| Scenario setting |
By Alarm, By Operation, By Fault, By Schedule, By Manual |
| Learning button |
1, For register |
| Hardware features |
| Serial port |
1, for debug |
| Electrical characteristics |
| Power supply |
DC 7V – 24V |
| Operation humidity |
10％~90％ |
| Operation temperature |
﹣10℃~+55℃ |
| Wireless transmission |
| RF frequency |
433MHz |
| RF method |
Two way communication |
| RF modulation |
2GFSK |
| RF distance |
800m |
| Wireless security |
AES-128 |
| Display |
| LEDs status |
3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue) |
| General |
| Installation method |
Wall Mounting |
| Dimension(WxHxD) |
38x25x18mm |
| Shell material |
Plastic |
| Color |
White |
| |
28.5g |
| Device management |
| Alarm input |
1 for tamper, NO/NC |
| Relay output |
1, NO/NC (0~36V DC, Max 5A） |
