- Motion Analyzer II processing
- Microwave adaptive processing
- Self-test supervision systems
- Changeable mirrors (two mirrors provided)

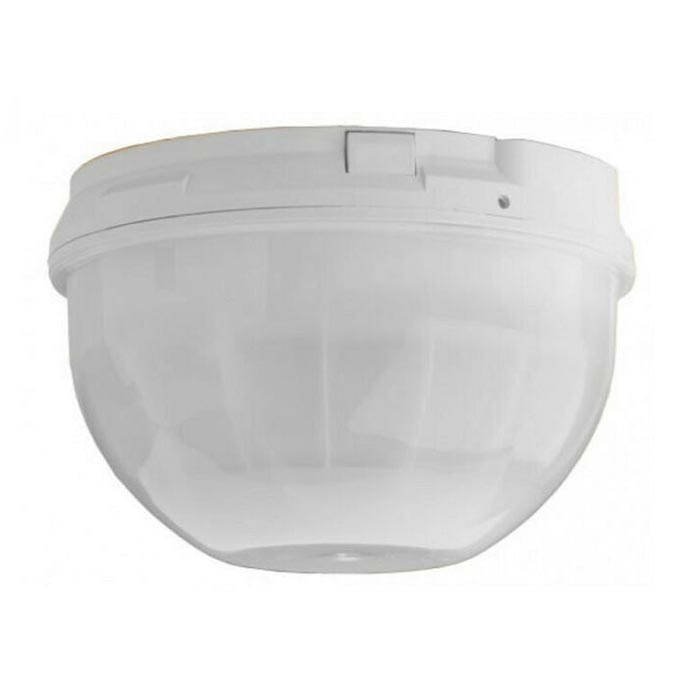

The ceiling mount panoramic DS9360 TriTech® PIR/ Microwave Detector uses several patented processing techniques to provide excellent catch performance with freedom from false alarm. Supervised microwave and PIR sections ensure that the detector is working properly. Field replaceable mirrored optics allows it to be mounted on ceilings from 2.4 m to 5.5 m (8 ft to 18 ft) in height.
Signal Processing
Uses passive infrared and microwave technologies to provide an alarm condition when both fields of protection are simultaneously activated. Alarm signals must meet the signaling requirements of both technologies to activate an alarm. Adjustable PIR and microwave sensitivity.
PIR Signal Processing
Motion Analyzer II uses multiple thresholds and timing windows to analyze timing, amplitude, duration and polarity of signals to make an alarm decision. Will not alarm on extreme levels of thermal and illumination disturbances caused by heaters and air conditioners, hot and cold drafts, sunlight, lightning, and moving headlights. Two sensitivity settings are provided.
Microwave Signal Processing
Adaptive processing adjusts to background disturbances. This helps to reduce false alarms while maintaining catch performance.
Test Features
Two high output tri-color alarm LEDs visible from any angle, and flash to indicate a trouble condition.
