- Magnetic contact combined with shock and tilt detection
- 2 wired inputs extension
- Fully remote configurable through App
- Multiple enrollment methods and easy installation design
- Frequency hopping against jamming for reliable transmission

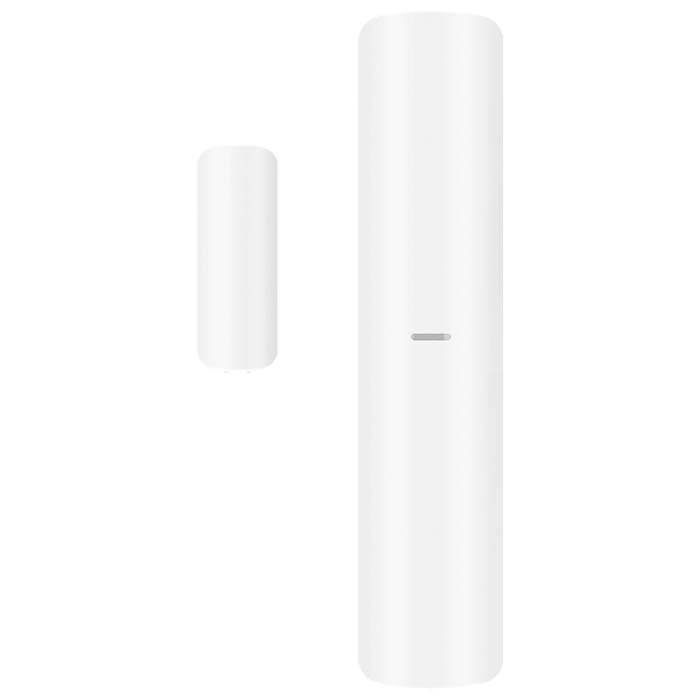

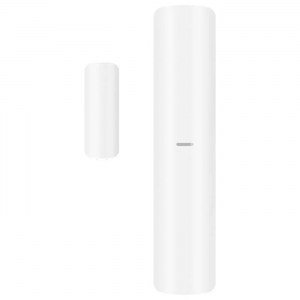

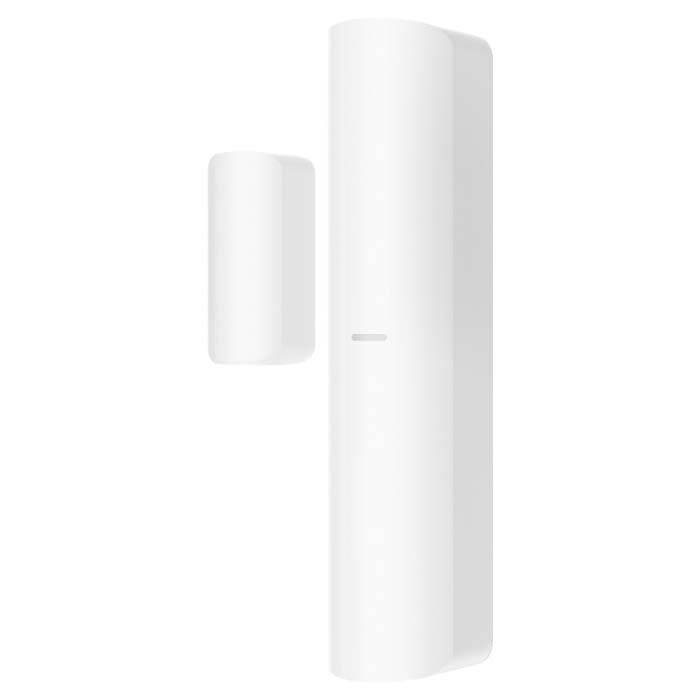

Wireless Magnet Shock Detector, 433MHz two-way RF wireless Technology (Tri-X: Transmission Range 1000m), Combined shock and tilt detection, 2-ch External Zones for wired inputs, Environment Temperature Indication, SSI(Signal Strength Indicators), Frequency hopping against jamming for reliable transmission, Designed for surface installation, Battery Life: 3 years.
| Detection Performance |
| Detection Method |
Opening Contact;Shock Sensor |
| Detection Gap |
43mm Max |
| Sensitivity |
Shock Detection: High,Normal,Low
Tilt Detection: Up to 25°
|
| Feature |
| Digital Processing |
Support |
| Tamper Protection |
Front;Rear |
| Environment Temperature Indicator |
Support |
| Signal Strength Indicator |
Support |
| Interface |
| Alarm Input |
Normally Closed;Normally Open;Impulse Count |
| Power Switch |
Power Up Enrolling |
| LED Indicator |
Green(MC),Orange(tilt),Red(shock),Blue(alarm) |
| Transmission |
| Transmission Technology |
Tri-X Wireless |
| Transmission Method |
Two-Way RF Wireless |
| Transmission Frequency |
433MHz |
| Transmission Security |
AES-128 Encryption |
| Transmission Range(Free Space) |
1Km |
| Frequency Hopping |
Support |
| Enrolling Method |
Power up;Remote ID;QR Code |
| Electrical Characteristics |
| Standard Battery Life |
3 years in work status (being triggered 20 times per day) |
| Power Supply |
Battery Powered |
| Battery Type |
CR123A x 1 |
| Typical Voltage |
3V |
| General |
| Operation Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity |
10% to 90% |
| Dimension(WxHxD) |
22.5mm × 103mm × 23.2mm
13mm × 34.4mm × 11.4mm
|
| |
60g |
| Application Scenario |
Indoor |
