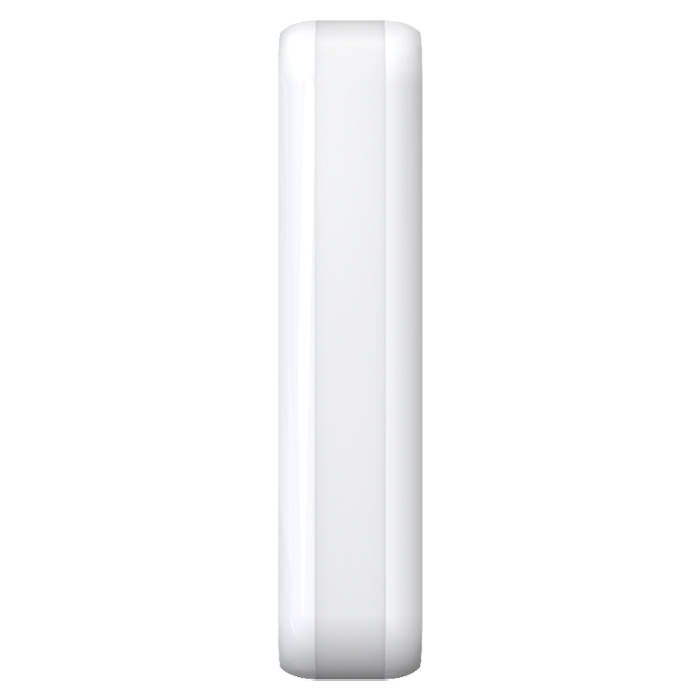

Wireless PIR AM Curtain Detector
- Slim design for window frame installation
- IP65 weather resistance for outdoor application
- Active IR anti-masking
- Directional detection support
- Multiple enrollment methods and easy installation
- Frequency hopping against jamming for reliable transmission
| Detection Performance |
| Detection Method |
Passive Infrared |
| Detection Range |
Wall Mount：10m
Ceiling Mount：5m
|
| Detection Angle |
5° |
| Detection Zones |
32 |
| Detectable Speed |
0.3～2m/s |
| Sensitivity |
Auto;Pet |
| White Light Filter |
6500lux |
| Pet Immunity |
Wall Mount：12Kg
Ceiling Mount：None
|
| Digital Temperature Compensation |
Support |
| Creep Zone Protection |
Support |
| Anti-masking |
Support |
| Feature |
| Digital Processing |
Support |
| Sealed Optics |
Support |
| Tamper Protection |
Front;Rear |
| Environment Temperature Indicator |
Support |
| Signal Strength Indicator |
Support |
| Directional Detection |
Support |
| Interface |
| Power Switch |
Power Up Enrolling |
| LED Indicator |
Blue(Alarm), Green+Orange(Mask) |
| Transmission |
| Transmission Technology |
Tri-X Wireless |
| Transmission Method |
Two-Way RF Wireless |
| Transmission Frequency |
433MHz |
| Transmission Security |
AES-128 Encryption |
| Transmission Range(Free Space) |
1Km |
| Frequency Hopping |
Support |
| Enrolling Method |
Power up;Remote ID;QR Code |
| Electrical Characteristics |
| Standard Battery Life |
5 years in work status (being triggered 20 times per day) |
| Power Supply |
Battery Powered |
| Battery Type |
CR123A × 2 |
| Typical Voltage |
3V |
| General |
| Operation Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity |
10% to 90% |
| IP Rate |
IP65 |
| Dimension(WxHxD) |
29.2mm × 134.4mm × 39.5mm |
| |
118.5g |
| Mounting Height |
2 to 3.5m |
| Mounting Method |
Wall;Ceiling |
| Application Scenario |
Indoor,Outdoor |
| Bracket |
L-shaped adapter included |
