- High quality Omni-directional microphone sensor
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission

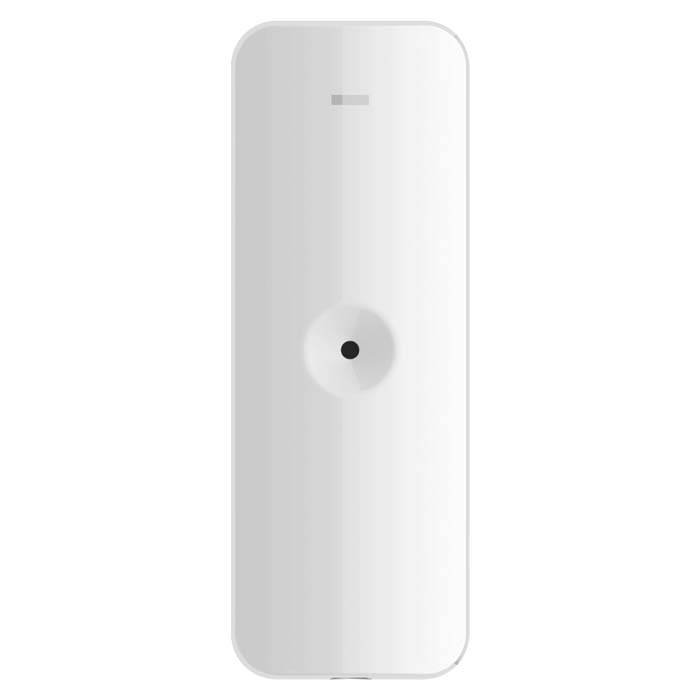

Wireless Glass Break Detector, 433MHz two-way RF wireless Technology (Tri-X: Transmission Range 1000m), BG Detection Range: Up to 8m/120°, 2-ch External Zones for wired inputs, Environment Temperature Indication, SSI(Signal Strength Indicators), Frequency hopping against jamming for reliable transmission, Wall/ceiling mount, Battery Life: 5 years.
| Detection Performance |
| Detection Method |
Acoustic Sensor |
| Detection Range |
8m |
| Detection Angle |
120° |
| Sensitivity |
2m;4m;6m;8m |
| Glass Type |
Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing |
| Glass Thickness |
2.4mm to 6.4mm |
| Glass Size |
0.3m x 0.3m to 3m x 3m |
| Feature |
| Digital Processing |
Support |
| Tamper Protection |
Front;Rear |
| Environment Temperature Indicator |
Support |
| Signal Strength Indicator |
Support |
| Interface |
| Alarm Input |
Normally Closed;Normally Open;Impulse Count |
| Power Switch |
Power Up Enrolling |
| LED Indicator |
Blue(Alarm) |
| Transmission |
| Transmission Technology |
Tri-X Wireless |
| Transmission Method |
Two-Way RF Wireless |
| Transmission Frequency |
433MHz |
| Transmission Security |
AES-128 Encryption |
| Transmission Range(Free Space) |
1Km |
| Frequency Hopping |
Support |
| Enrolling Method |
Power up;Remote ID;QR Code |
| Electrical Characteristics |
| Power Supply |
Battery Powered |
| Battery Type |
CR123A × 2 |
| Typical Voltage |
3V |
| Standard Battery Life |
5 years in work status (being triggered 20 times per day) |
| General |
| Operation Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity |
10% to 90% |
| Dimension(WxHxD) |
38.8mm × 107.0mm × 24.5mm |
| |
83g |
| Mounting Method |
Wall;Ceiling |
| Application Scenario |
Indoor |
