- Wide input voltage range: AC81~145V or AC140~290V, meet the requirements in different parts for electric network
- Boost and buck AVR for voltage
- Off-mode charging, cold start function and full
- Continuous power supply for preventing data
- Compact

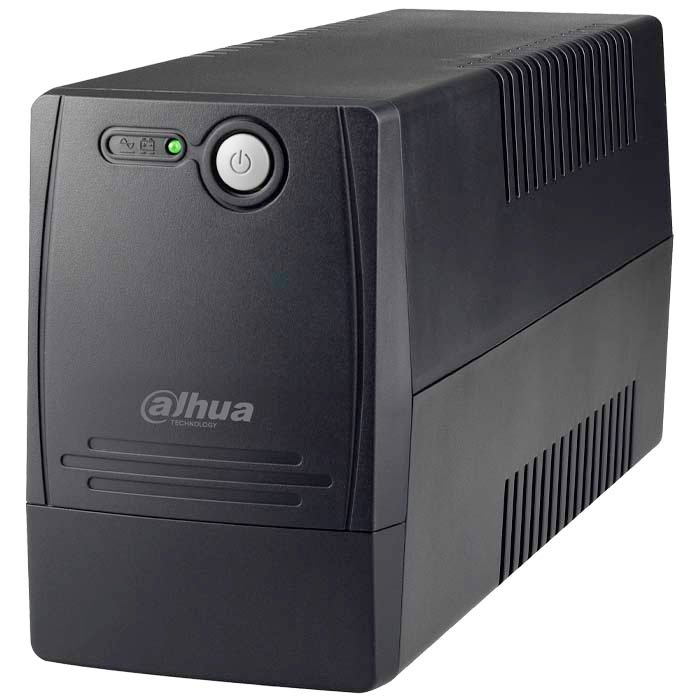

1500VA/900W Line-interactive UPS, 2x 12 V/9 Ah, 4 hours recover to 90% capacity.
| Plug type |
European |
British |
Australian |
Indian |
North American |
| Capacity |
1500VA/900W |
| Input |
| Rated voltage |
220Vac~240Vac |
110Vac~120Vac |
| Voltage range |
140Vac~290Vac |
81Vac~145Vac |
| Rated frequency range |
50Hz or 60Hz |
| Power factor |
0.6 |
| Output |
| Voltage |
220/230/240 VAC |
110/120 VAC |
| AC Voltage Regulation (Batt. Mode) |
±10% |
| Frequency Range (Batt. Mode) |
50Hz or60Hz±1Hz |
| Transfer Time |
2-6ms |
| Waveform (Batt. Mode) |
Simulated sinewave |
| Battery |
| Battery type & number |
12 V/9 Ah x 2 |
| Typical recharge time |
4 hours recover to 90% capacity |
| Charging voltage |
27.4V±1% |
| Indicators |
| Battery mode |
Green lighting |
| AC mode |
Green lighting |
| Alarm |
| Battery mode |
Sounding every 10 seconds |
| Low battery |
Sounding every second |
| Overload |
Sounding every 0.5 second |
| Fault |
Continuously sounding |
| Protection |
| Full protection |
Overload, discharge and overcharge protection |
| Environmental |
| Operating temperature |
0°C ~ +40°C (+32°F ~ +104°F) |
| Operating humidity |
0~90% RH(non-condensing) |
| Altitude range |
<1000m(3280.84ft) |
| Construction |
| Color |
Black |
| Noise level |
<40dB |
| Dimensions |
320mmx130mmx182mm(15.6″x5.12″x7.17″) |
| Weight |
10.4kg(22.93lb) |
