- Layer two Hardened PoE switch
- Supports PoE power management
- MAC auto learning and aging, MAC address capacity is 8K
- Conforms to 3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply
- Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
- Wide working temperature design:-30°C~ 65°C
- Supports dual power backup

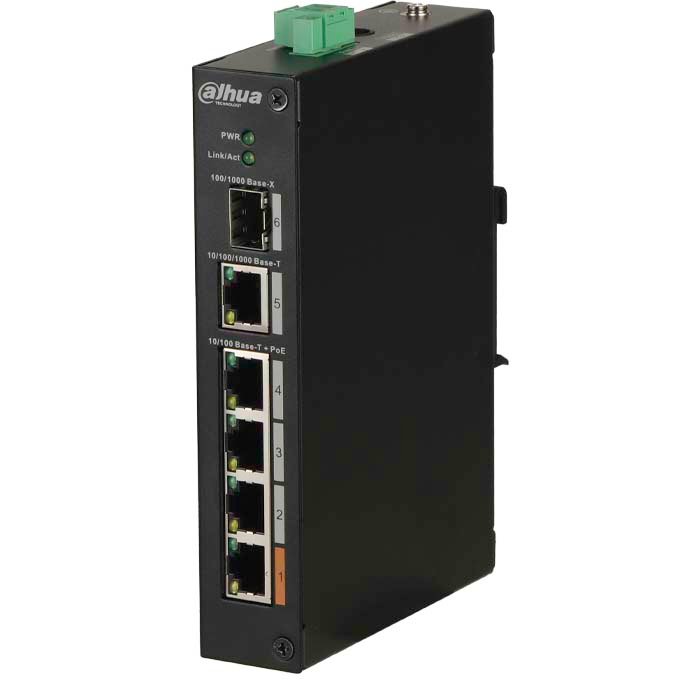

DH-PFS3106-4ET-60 is a layer two Hardened PoE Switch, which provides 4*10/100Mbps PoE ports, 1*100/1000 Mbps optical port and 1*10/100/1000Mbps Ethernet uplink port. With high level lightning protection and wide working temperature range makes it a better performance in outdoor or harsh environment.
6-Port Unmanaged Switch with 4 PoE Ports 10/100 Mbps, 1 × RJ-45 10/100/1000 Mbps (Uplink), 1 × SFP 100/1000 Mbps (Uplink)
| Technical Specification |
| Model |
DH-PFS3106-4ET-60 |
| Ethernet Port |
1*100/1000 Base-X
1*10/100/1000 Base-T
4*10/100 Base-T (PoE power supply)
|
| PoE Power Consumption |
Port1≤60W, Port2-4≤30W, Total≤60W |
| PoE PIN Assignment |
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| PoE Power Management |
Support |
| PoE Protocol |
IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE |
| Switching Capacity |
6.8G |
| Packet Forwarding Rate |
3.57Mpps |
| Packet Buffer Memory |
1Mb |
| MAC Table Size |
8K |
| Flow Control |
Enable by default |
| Application Humidity |
5%~95% |
| Power |
DC 48~57V power adapter |
| Lightning Protection |
Common Mode 6KV
Differential Mode 4KV
|
| ESD Protection |
Air Discharge 15KV
Contact Discharge 8KV
|
| Working Temperature |
-30°C~65°C |
| Weight |
440g |
| Dimension(W×D×H) |
150mm×108mm×30mm |
